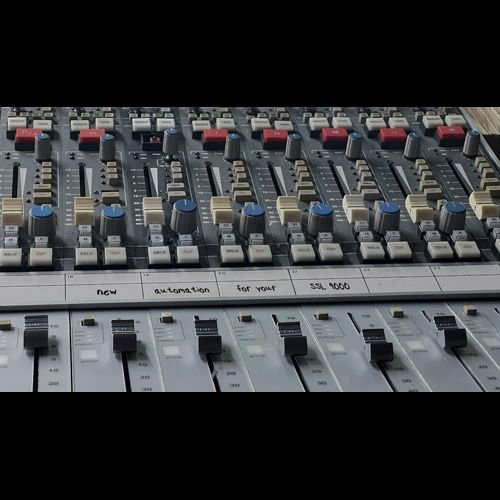

After years of anticipation, THD-Labs is finally bringing its legendary automation interface to the SSL 9000 J and K consoles.
The system includes:
- Large fader automation
- Small fader automation
- Cue automation
- EQ/Insert In/Out automation
- Centre-section groups automation
- Full channel-strip recall
- Centre-section transport and master section, via our new touchscreen controller
- K-series Utilipan features*
*THD-Labs is looking into porting K-series Utilipan features to J-series consoles.
A unique automation controller
Afraid that your current centre-section transport control will stop working at any moment? The optional hybrid touchscreen automation controller replaces the existing centre-section control and brings all automation features right to your fingertips.
SPECIFICATIONS AND FEATURES
Automation
- 8 to 96+ channels of automation, configured to match channel count
- Use your DAW as the automation software. Available workflows:
1. INJEKTOR (AAX/AU/VST plugin)
2. HUI*
3. HUI hybrid* - READ / WRITE resolution: 10 bits (1024 steps) +/- 0.1 dB precision
- Control and Automate all of the following:
– Large Fader Volume
– Large Fader Cut
– Small Fader Volume
– Small Fader CUT
– EQ In/Out
– Insert In/Out
– Cue In/Out
– FX 1-6 In/Out - Support for TRIM and ABSOLUTE modes
- Enhanced fader level match (to match fader position in motor OFF mode)
- Set individual channel automation modes directly from the fader’s status switch
- Definable post-write automation mode toggle
- Master fader automation
- Grouped Automation
- Any console fader can be used as a virtual DAW controller
Console Features
- Control console groups
- Create and load mix scenes
- Built-In tests and diagnostics
Hardware specifications
The TAI for SSL 9000 J / K consoles installs directly inside the consoles; no external chassis required. It consists of:
- 1 motherboard controller per bucket of 8 channels
- 1 centre-section master motherboard
- 1 touchscreen-based master control unit (optional)
- All cabling and hardware required for installation
The system runs on the console power supply; no external power needed.
All components are RoHS lead-free.
Compatibility
Injektor supports computers running:
- macOS 10.9.5 (Mavericks) — macOS 13 (Ventura)
Compatible with both Intel and Apple M1 processors. - Windows 10 / Windows 11
TaiMothership plug-in is tested for:
- Pro Tools 11 — Pro Tools 2024 (Rosetta currently required)
- Logic Pro X
The HUI workflow does not require any software installation and supports any HUI compatible DAW.
* Pro Tools limits HUI workflows to a maximum of 32 simultaneous channels.
ORDER
The Tangerine Automation Interface for SSL 9000 K/J is now available!
