Descripción
Save 20% on all Tangerine Systems (Only until October 31st 2024). Pregúntanos por los descuentos.
Following in the steps of our flagship Automation Interface for SSL and Flying Faders, the Tangerine Automation Interface for GML Automation brings the same powerful and intuitive workflow to the GML platform with modern DAW-controlled automation.
THE TANGERINE AUTOMATION INTERFACE IS A MODULAR SYSTEM CUSTOMIZABLE TO YOUR UNIQUE CONSOLE

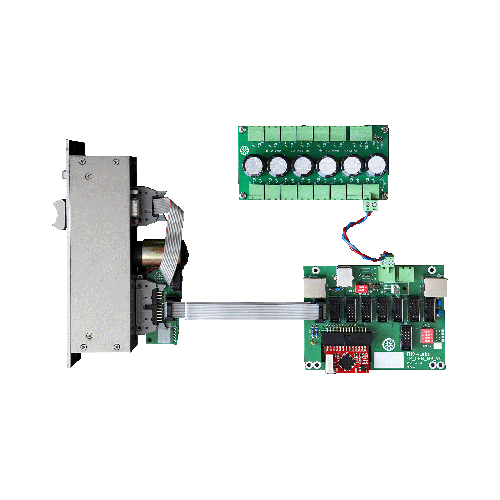

The Tangerine Automation Interface for GML Automation is directly built-in to the console without any additional hardware. Each bank of 8 GML faders recieves an automation motherboard that connects to 8 Tangerine Fader Controllers. These controllers plug directly into the GML faders. Up to 12+ motherboards can be daisy-chained using RJ45 cables. This system replaces all existing GML automation cables and hardware, keeping only the high-quality faders and greatly improving system reliability. The interface reuses the existing +12V GML power supply when functional and reliable. A single USB cable connects the console to your audio workstation.
Transfer mixes between consoles
Like all our world class interfaces, seamless integration with our state-of-the-art Injektor software and plug-in suite comes standard. Never before could a single mix session cross multiple automation systems. Track your drums on a Flying Faders console in Berlin, finish your vocals on an SSL in London, and then mix on one of the 7 remaining legendary Focusrite console with GML automation; a single Pro Tools session carrying both audio and automation data seamlessly transitions your fader moves and mutes to any Injektor compatible studio, on any console.
Simple and Efficient
Completely silent and totally fanless, the Tangerine Automation Interface for GML Automation greatly reduces the cost of maintenance of your console. Gone are the days of having to remove faders and fiddle endlessly with TRIM pots to calibrate your automation levels. With the Tangerine system, all calibration is digital and stored on each individual fader controller. Routine calibration can be completed in under 5 minutes, without ever removing a fader.
Flexible Workflows
The Tangerine Automation Interface offers multiple automation workflows :
- In INJEKTOR workflow, the TAI brings direct READ/WRITE/TOUCH/TRIM automation of faders and mutes directly in a AAX/AU/VST compatible DAW.
- In HUI workflow, the TAI controls DAW virtual faders directly using your consoles’s faders as input controllers.
OPTIONS
Replacement 12V Power Supply
Is your original 12V automation PSU broken? Maybe was it never provided with your console? Maybe are you sick of your power supply doubling as a space heater? We’ve got you covered! Our state-of-the art switching power supply replaces the existing GML 12V supply rail for high-efficiency, cool and quiet operation.
SPECIFICATIONS AND FEATURES
Automation
- 8 to 96 channels of GML automation, configured to match channel count
- Use your DAW as the automation software. Available workflows:
1. INJEKTOR (AAX/AU/VST plugin)
2. HUI* - READ / WRITE resolution: 10 bits (1024 steps) +/- 0.1 dB precision
- Control and automate FADERS and MUTES
- Support for TRIM and ABSOLUTE modes
- Enhanced fader level match (to match fader position in motor OFF mode)
- Set individual channel automation modes from the faders themselves
- Definable post-write automation mode toggle
- Grouped automation
- Linked automation
- Any console fader can be used as a virtual DAW controller
Console Features
- Control console mutes and solos
- Create and control groups and links
- Create and load Mix Scenes
- Define channels for solo-safe
Testing & Maintenance Features
- Motor Test, with 5 patterns
- LED Test, with 3 patterns
- Switch Test
- Built in auto-shut off protection for motor tests
Hardware specifications
The TAI for GML installs directly inside the consoles; no external chassis required. Each bank of 8 channels purchased includes:
- 1 Tangerine Automation Motherboard (the 1st one will be a master, all others slave)
- 8 Tangerine GML Fader Controllers
- 8 ribbon cables
- 1 short RJ45 cable
- 1 power connector
- 1 motherboard mounting hardware kit
Additionally, systems of 16 channels and above include:
- 1 power distribution card
- Bulk wiring and power connectors to link the power distribution to the motherboards
The system requires a functional GML + 12V power supply or the optional Tangerine Power Supply.
All lead-free, RoHS components.
Options
- Tangerine Power Supply – if the existing GML +12V power supply is unavailable or unreliable, THD-Labs can supply a high-powered, low noise power supply to replace it
Compatibility
Injektor supports computers running:
- macOS 10.9.5 (Mavericks) — macOS 13 (Ventura)
Compatible with both Intel and Apple Silicon processors. - Windows 10 / Windows 11
TaiMothership plug-in is tested for:
- Pro Tools 11 — Pro Tools 2024 (Rosetta currently required)
- Logic Pro X
The HUI workflow does not require any software installation and supports any HUI compatible DAW.
* Pro Tools limits HUI workflows to a maximum of 32 simultaneous channels.
ORDER
The Tangerine Automation Interface for GML is now available!
