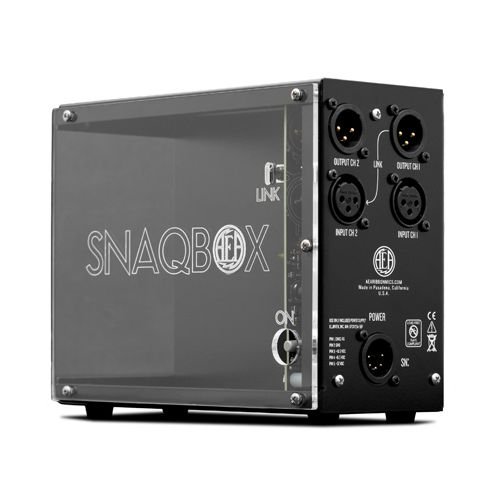

Snaqbox™ Overview
- 2-Slot 500 Series Chassis
- Compatible with all standard 500 Series modules
- Durable Steel Chassis with Clear or Orange Acrylic Sideplate
- XLR I/O
- Link/Cascade Switch
- Universal External Switching Power Supply; Seamlessly Compatible With Both 120VAC and 230VAC
- Made in the USA
Your Signal Chain — Now in Full View
A sturdy, transparent 500-series chassis built for pristine power, flexible routing, and a clear view of your gear.
The Snaqbox™ features a LINK/CASCADE switch. When engaged, the audio output of Channel 1 is internally routed to the input of Channel 2. The link switch disconnects the connection from the XLR input of Channel 2, but does not disconnect the output of Channel 1 (thus allowing dry and wet outputs).
The Snaqbox™ chassis is made of steel and the bottom is affixed with durable rubber bumpers. All XLRs on the Snaqbox™ are Neutrik brand. The unit is powered by an external switching power supply to keep switching noise away from the unit.
Your Modules Deserve to be Seen
Available in Clear or Fluorescent Orange acrylic, the Snaqbox™ is designed to showcase your modules — because they’re worth seeing.
Technical Specifications
Power:
Dimensions:
Weight:
+16V, 150mA (per slot)
-16V, 150mA (per slot)
+48V, 13mA (per slot)
Length: 7.4”
Width: 3.3”
Height: 5.9”
Unit weight: 2.2lb (~998g)
Shipping weight: 4.6lb (~2.1kg)
