Descripción
Ideal for both studio recording and live sound applications, the new Royer R-12 active
ribbon microphone delivers outstanding performance on electric and acoustic stringed
instruments, vocals, brass, pianos and organs, as well as drums and percussion
instruments at an easily affordable price point.
The R-12 is capable of extremely natural sound acquisition, making the microphone an
exceptional choice for capturing an audio source just like it sounds to the ear with
extraordinary sonic accuracy. Royer ribbons have always been known for their ability to
deliver a warm sound capable of capturing the elusive nuances of the original
performance. R-12 takes this capability to the next level.
Of particular note, the R-12 uses the same 2.5 micron ribbon element found in the
company’s legendary R-121 microphone. This feature delivers Royer’s well-known high
SPL (Sound Pressure Level) capabilities measured at 160dB @ 1kHz. With its
switchable -15dB pad, the R-12 can deliver excellent headroom for louder program
material such as drums and dimed electric guitars. This important feature eliminates any
potential for headroom-related distortion on even the loudest sound sources.
Another notable feature of the new R-12 microphone is its onboard active electronic
circuitry, which significantly increases output level for quieter sound sources such as
acoustic instruments and vocals. R-12’s active electronics consistently put a perfect
load on the ribbon element, enabling the microphone to deliver its full sonic potential.
The R-12 is also outfitted with a switchable High Pass filter precisely tuned to reduce
low end proximity buildup, making this microphone a perfect choice for capturing louder
vocal performances and close-miking of instruments and loudspeaker cabinets.
Completing its rich feature set, the R-12 houses an internally shock-mounted ribbon
transducer, which helps to protect the ribbon element while also reducing handling
noise. Combined with its built-in triple-layer wind screen, the microphone’s ribbon is
effectively protected against plosives and other wind-related noise.
R-12 Technical Specifications
Acoustic Operating Principle: Electrodynamic pressure gradient with active electronics
Polar Pattern: Figure-8
Generating Element: 2.5-micron aluminum ribbon
Magnets: Rare Earth Neodymium (Grade 52)
Frequency Response: 30 – 15,000Hz +/- 3dB
Sensitivity: -36dB (re. 1V/pa)
Switchable Pad: -15dB
Switchable Bass Cut: 100Hz (6dB per octave)
Self-Noise: < 16dB
Output Impedance: 200 ohms, balanced
Output Connector: Male XLR 3-pin (Pin-2 hot)
Rated Load Impedance: 1k-Ohms, minimum
Maximum SPL: > 160dB @ 1kHz, > 135dB @ 30Hz
Power Requirements: 48-Volt Phantom Power
Supply Current: 4mA
Dimensions: Length including mounting base: 8 1/4” (209.5mm) x 1 3/8” (35mm)
Weight: 462 grams (16.3oz)

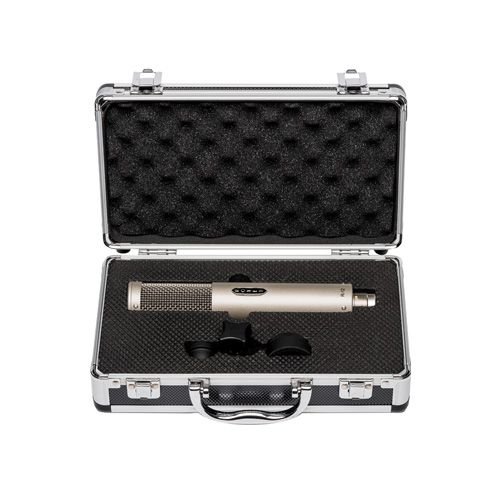

Accessories: Microphone Holder, Mic Sock, Carrying Case
Microphone Warranty: 10-year full warranty coverage on materials, workmanship, and
finishes to the original owner.
Ribbon Element Warranty: First re-ribbon free to the original owner within one year of
purchase.
Extended Ribbon Element Policy: First re-ribbon free within five years of purchase if the
microphone is registered by the original owner within one year of purchase.
Microphones must be registered within one year of purchase for extended ribbon
element warranty coverage.
