Descripción

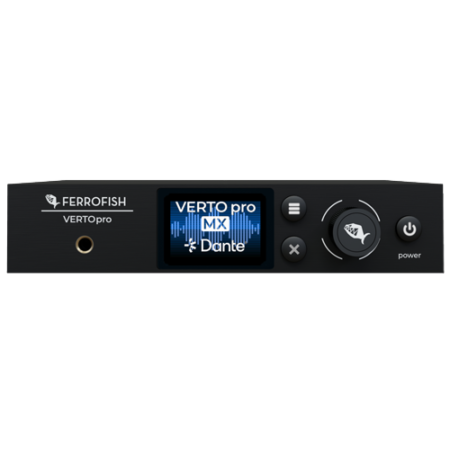

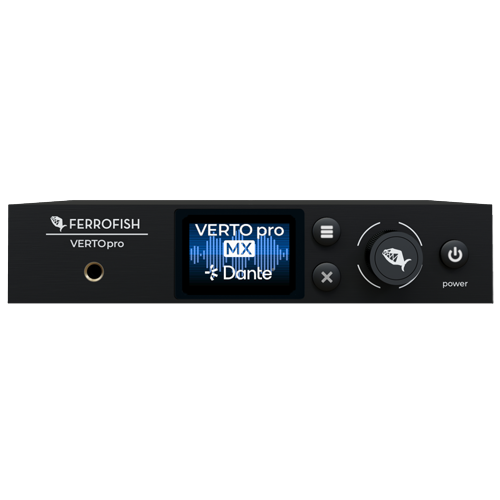

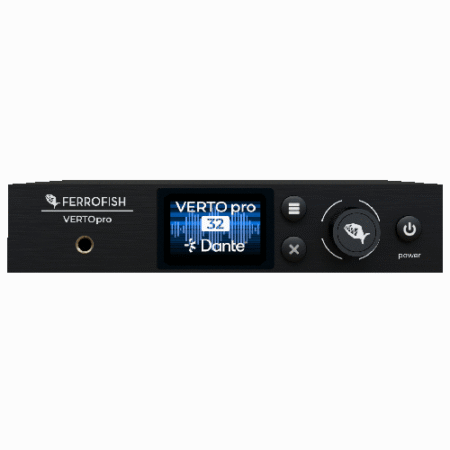

The Ferrofish VERTOpro series is a professional digital audio converter and routing platform designed
to seamlessly connect Dante, ADAT and MADI. Depending on the model, VERTOpro provides up to 64
× 64 Dante channels, ADAT connectivity or dual MADI interfaces. A powerful single-channel routing
matrix, intuitive operation via the IPS color display and flexible MADI expansion make VERTOpro an
ideal solution for studio, broadcast, live sound and fixed-installation environments.
VERTOpro 32 and VERTOpro 64 can be upgraded with optional MADI functionality, while VERTOpro
MX includes dual MADI interfaces out of the box. All models support sample rates up to 192 kHz,
AES67 compatibility, redundant Dante networking and extensive synchronization options.
Highlights
Connects Dante, ADAT and MADI in one compact device
Flexible single-channel routing matrix
High-resolution 3″ IPS color display
Up to two MADI SFP modules
Redundant MADI operation
Two independent MADI streams
Redundant Dante networking
Dante AES67 compatible
Integrated headphone monitoring
Supports sample rates up to 192 kHz
2 of 2
Features
Dante
Audinate Brooklyn 64×64 Dante
Switched and Redundant modes
AES67
ADAT
VERTOpro 32: 4× IN / 4× OUT
VERTOpro 64: 8× IN / 8× OUT
SMUX support up to 192 kHz
MADI
Up to two MADI SFP modules
Multimode, Singlemode and Coax options
Independent dual MADI streams
Redundant operation
MADI-to-MADI routing
Optional upgrade for VERTOpro 32/64
Routing
Single-channel routing
Monitoring
Integrated headphone output
Dedicated ESS ES9023 DAC
Four gain settings
User Interface
3″ IPS TFT color display
Level meters, Clock and interface status
Clocking
Internal clock
Dante synchronization
ADAT synchronization
Word Clock In / Out
Switchable 75 Ω termination
USB & MIDI
USB-C (USB-MIDI only)
3.5 mm TRS MIDI Type A
RemoteFish
MIDI CC
Additional Features
Device presets
Device Lock
Technical Specifications
General
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Half 19-inch, 1U enclosure
Dante
64×64 @ 48 kHz, 32×32 @ 96 kHz, 16×16
@ 192 kHz
ADAT
VERTOpro 32: 4×4, VERTOpro 64: 8×8
SMUX 1/2/4
MADI
2 SFP slots
64- and 56-channel modes
Word Clock
BNC In / Out
75 Ω termination selectable
MIDI
TRS Type A In / Out
USB
USB-C MIDI
Headphone
6.3 mm jack
ESS ES9023 DAC
Power
12 V DC / 3 A
Locking connector
Internal self-resetting polyfuse
Mechanical
220 × 135 × 44 mm
Weight: 1 kg
Environmental
+5 °C to +45 °C, <75 % RH, non-condensing
Package Contents
VERTOpro 32/64: Device, PSU, Manual
VERTOpro MX: Device, PSU, Manual, 2×
Multimode MADI SFP, LC/SC cable
EAN
VERTOpro MX: 4313042884290
