Descripción

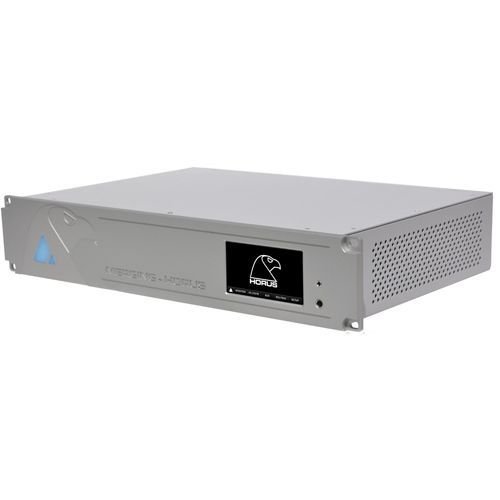

Interface de Audio, Preamplificador, Convertidor AD, 6 zócalos para tarjetas. Hasta 48 entradas Micro/Línea, Convertidor DA hasta 48 salidas línea.44.1-384 Khz Conectable vía IP RAVENNA/AES 67. 24 entradas y salidas digitales AES-EBU y 64 canales E/S MADI. Peso aproximado (excluyendo PS redundante) 6,5 kg. Dimensiones aproximadas (2U de montaje en rack) 483 x 320 x 63 mm , Voltaje (AC) 90V-260V, 47-63 Hz, Consumo de energía (máximo)
Horus Base Unit Features
Modular by Design
The modular design of Horus allows you to buy what you need or can afford. You can always add to it later or even change your mind. In addition to the choice of analog I/O modules you can always use one slot for the PT64 option for Pro Tools HD™ users.
The MADI capacity can be extended to 128 I/O by adding an additional expansion card without taking one of your 6 I/O slots.
Base Unit – Hardwired Features
Digital I/O
64 MADI I/O (Coaxial & Optical)
24 AES/EBU I/O (D-SUB)
RAVENNA / AES67 (RJ45)
Word Clock I/O
Synchronization I/O
LTC
MIDI
Video Reference
Sample Rate support
44.1 – 384 kHz PCM
DXD and DSD64/128/256
User Interface
Remote control over LAN (CAT5E/CAT6)
Direct access on unit with touch screen
Redundant Power Options:
Optional redundant power supply for failsafe use.
*Mandatory when using more than 3xAD8D/AD8DP in a single unit due to increased power consumption*
Options
6 Option slots that fit any combo of:
8 Channel Mic/Line Input Card (AD8D / AD8DP)
AD8D sample rates from 44.1 -> 192kHz
AD8DP sample rates from 44.1 ->384 kHz, DXD/DSD64/128/256
8 Channel Mic/Line Input Card (AKD8D / AKD8DP)
AKD8D sample rates from 44.1 -> 192kHz
AKD8DP sample rates from 44.1 ->384 kHz, DXD/DSD64/128/256
8 Channel Line Out Card (DA8/DA8P)
DA8 Sample rates from 44.1 -> 192kHz
DA8P sample rates from 44.1 ->384 kHz, DXD/DSD64/128/256
8 Channel Mic/Line Input & 8 Channel Line Out Card (ADA8)
Sample rates from 44.1 -> 192kHz
64 Channels of Pro Tools HD™ connectivity in each card (PT64)
Sample rates from 44.1 -> 192kHz
can only be fitted in slots 3 and 6
1 MADI option slot for:
additional 64 I/O MADI coaxial/optical (MADM/MADS)
Note: P and “non-P” cards (Premium and Standard) can be mixed in the same unit
Route Signal Anywhere
The biggest advantage of a networked environment is that you are freed from the point to point limitations of legacy digital connections. Horus has been designed so that any input can be routed to any amount of outputs as required at the same time. The network can be easily managed and monitored using ANEMAN or there are comprehensive routing pages accessible both locally on the touchscreen and by remote access using a standard web browser; Horus is your answer to signal flow management in your studio.
RAVENNA / AES67 for ANY workstation
Pyramix users are of course our first love, but we are also able to offer any DAW or NLE user the opportunity to take advantage of RAVENNA/AES67 by using the ASIO Driver for PC (RAVENNA support) or the Premium Virtual Audio Device for MAC (RAVENNA & AES67 support). Those driver are available for Horus and Hapi.
Note that a Standard Virtual Audio Device for MAC with some limitations is available for users without Merging hardware.
For drivers specifications and differences see here for macOS Virtual Audio Device details and here for Windows ASIO driver details.
Completely Controlled over LAN
Horus comes with a web-browser based control interface allowing any web-enabled device to access all the parameters of each unit over the network. ANEMAN can easily manage AoIP networks of any size.
