Descripción

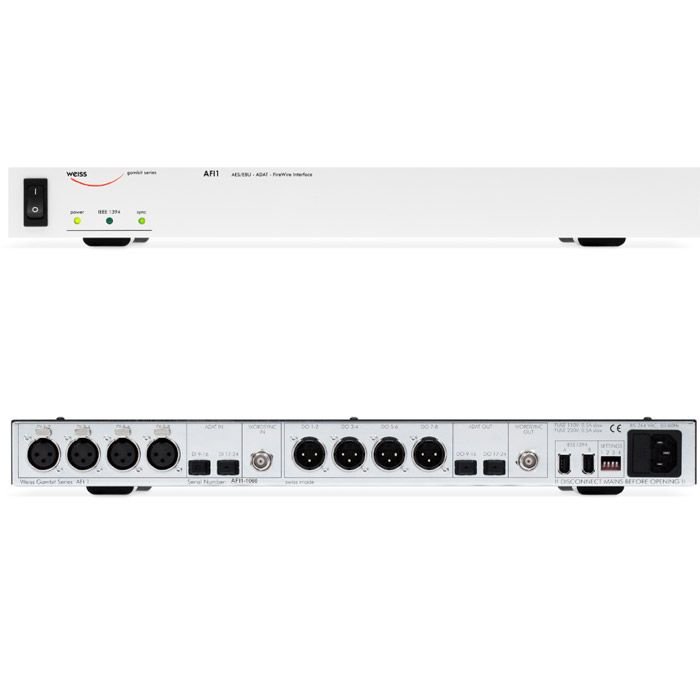

AFI1 Firewire to/from AES/EBU and ADAT Interface The AFI1 is a 24 channel Firewire Interface with 8 channels of bidirectional AES/EBU interfaces and 16 channels of bidirectional ADAT interfaces. The AFI1 simultaneously supports the following conversions: * Firewire to AES/EBU (8 channels) * AES/EBU to Firewire (8 channels) * Firewire to ADAT ( 16 channels max.) * ADAT to Firewire ( 16 channels max.) Features of the AFI1: Inputs: Digital Audio inputs on Firewire (two connectors), XLR (AES/EBU), Toslink (ADAT, two connectors). Outputs: Digital Audio outputs on Firewire (two connectors), XLR (AES/EBU), Toslink (ADAT, two connectors). Sampling Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz. Number of ADAT channels at 44.1/48: 16, at 88.2/96: 8, at 176.4/192: 4. Software: Drivers for Windows™ and OSX™ operating systems. Power Supply: Supply range: 100..240V. Power consumption 10VA max.
