Descripción

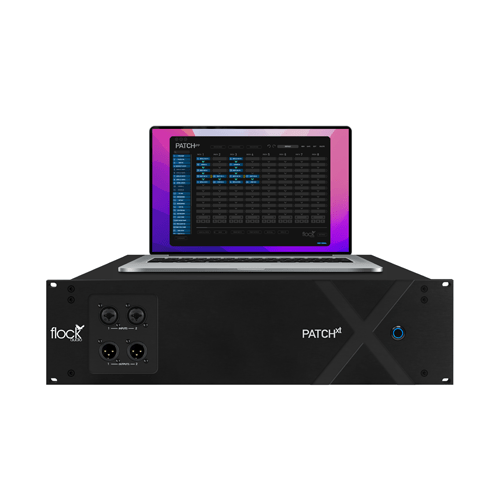

The highly anticipated and long awaited PATCH XT System harnesses the advanced analog routing technology of the PATCH Series of products in a mammoth I/O configuration of 192 Points (96 Inputs / 96 Outputs). Meticulously designed, the PATCH XT System was created for power users who need to get the most of out of their analog hardware routings capabilities. Equipped with the same Patented Matrix Technology as our flagship model PATCH, the XT System boasts some sought after upgrades including Locking USB Host Connector, CAT5 Ethernet Network Host Connector option, Beautifully machined anodize panel among many other upgrades. Visit www.flockaudio.com/patchxt for more details.
In the Box:
- PATCH – (3U Hardware Rack Unit) Dimensions: 19″ (W) x 5.25″ (H) x 12″ (D)
- USB 2.0 – (10 ft) Host Control Cable (USB-A to USB-B)
- Power Supply – Internal Power (110V or 220V) Power Supply
- Power IEC Cable – (Shipped with IEC Plug based upon customer region)
- 6 Step Quick Start Setup Guide
- Hardware Index Setup Template
Details:
- Computer Connectivity: USB 2.0
- Compatibility: OSX 10.7 Lion & Newer / Windows 7 & Newer
- Software: PATCH APP v2.0 (Online Download) – *iOS iPad Coming Soon*
- Chassis: 3U Rackmount (12″ Deep)
- Patch Point Connections: 192 Total – 96 Inputs / 96 Outputs (Expandable with all PATCH Models)
- 48v Phantom Power: 96 Channels Independently Controllable
- Front Connectors: 2x Combo TRS/XLR Inputs & 2x XLR Outputs
- D/A or A/D Conversion: No AD/DA Conversion, 100% Analog, Sonically Transparent Audio Path
- Routing System: Patended Flock Audio Matrix Technology

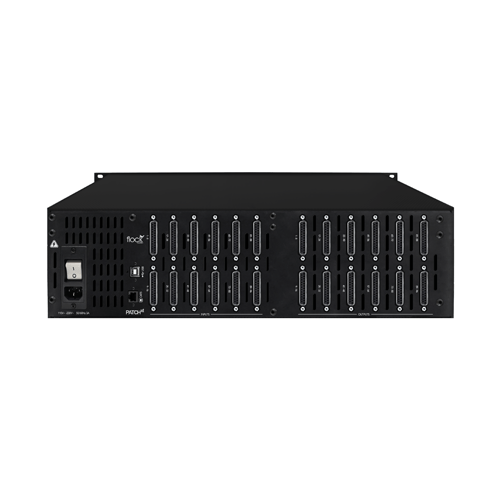

- Analog Connections: DB-25/D-SUB Female Connectors (Standard Tascam Wiring Pinout)
- Warranty: 1 Year Total System + Included Cables Manufacturers Warranty
More Details:
• 192 Point Connections (96 Inputs / 96 Outputs)
• DB-25/D-SUB Tascam Standard Pinout Format Connectors
• 32 Assignable Independent Channels of 48V Phantom Power
• Front Panel – 2 Combo TRS/XLR Input & 2 XLR Output
• PATCH APP Routing Software (OSX & Windows) (iOS iPad Coming Soon)
• Create, Store & Recall Routings in Seconds
• Create Complex Multing Combinations w/ No Impedance Issues
• No AD/DA Conversion, 100% Transparent Analog Signal Path
• Remote Sleep/Wake Mode Control of PXT Hardware
• Patented Flock Audio Matrix Technology
• Multiple Unit Expansion with any PATCH Model (PATCH, LT & XT)
• Internal Power Supply w/ IEC Cable Included
• 6 Ft. – USB 2.0 (USB-A to USB-B) Threaded Securement – Cable Included
• CAT5 Network (Optional Control) Capability (Cable Not Included)
• Unit Dimensions: 3U – 5.25”(H) x 19” (L) x 13” (D) – 35 lbs
• Optional Rear mount Cable Hanger Accessory (Product Code: XTH)
