Descripción
Audio Processing
- Channel Count: Available from 8 to 32 outputs
- Future Option (2026): Up to 64 channels (build-to-order)
- Architecture: Software-based, 64-bit floating point processing
- Sample Rate: Up to 192kHz (channel dependent)
Immersive Audio Formats
- Decoded Formats: Dolby Atmos, DTS:X Pro, Auro-3D, IMAX Enhanced
- Upmixers: Dolby Surround, DTS Neural:X, Auro-Matic
- Flexibility: Full-format decoding with channel-to-speaker assignment
HDMI Connectivity
- Inputs / Outputs: 4x HDMI Inputs, 2x HDMI Outputs
- Version: HDMI 2.1 with HDCP 2.3
- Max bandwidth: 40 Gbps on all inputs and outputs
- 8K Support: Up to 8K60 (4:2:0 chroma only)
- 4K Support: Up to 4K120 (with full 4:4:4 chroma)
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 (format-dependent)
- HDR Support: HDR10, HDR10+, Dolby Vision, HLG
- Gaming Features: VRR, FRL and ALLM
- Other Features: On-screen display (OSD), full pass-through, ARC/eARC
Audio Inputs
- Dante: Up to 32 input channels
- AES/EBU: Up to 32 inputs via 2x DB25
- S/PDIF: 1x coaxial + 1x optical
- 3D Microphone: 1x Ethercon input (provides power)
- Independence: All inputs are independent
- Future AoIP Input Capacity (2026): Up to 64 inputs (build-to-order)
Audio Outputs
- Dante: Up to 32 output channels
- AES/EBU: Up to 32 outputs via 2x DB25
- Analog: 8x balanced outputs via 1x DB25
- Analog Output Level: +18 dBu max
- THD+N (analog output): 110dB (1kHz 0dBFS, 20kHz BW)
- Dynamic Range (analog output): 115dB A-weighted (ref +18dBu)
- Channel Assignment: Any output channel to any physical audio output
- Output Types: Analog, digital or AoIP
Network Architecture & AoIP
- AoIP Format: Dante (+AES67 compatibility)
- Compatibility with Dolby media servers: via AES67
- Ethernet Ports: 3x Gigabit ports: 1x RJ45, 2x SFP cages
- SPF module: 1x RJ45 provided
- Networking Modes: Integrated switch, isolated, or redundant paths
- AoIP Simplification: DirectLink supported with Amplitude16
Control & Integration
- Full UI Access: macOS/Windows app or Web UI
- Mobile Remote Control: iOS & Android app
- Control Drivers: Crestron, Control4, Savant, RTI, AMX, Nice, AVA
- Physical Control: IR Input (Jack 3,5″, IR receiver included), RS-232
- Triggers: 1x input, 4x programmable outputs
- IR Remote Control: Optional
- Remote Management: Partner access through via my.trinnov.audio
- Front panel: 5-inch touchscreen
- Power Modes: Standby & fast boot (firmware-ready)
Digital Acoustic Optimization
- Trinnov Technologies: Trinnov Optimizer, WaveForming & Remapping
- Calibration Workflow: Step-by-step guided setup
- 3D Mic Integration: Automatic compensation file upload
Audio Streaming
- Roon: Certified Roon Ready endpoint (soon)
- Audirvãna: Certified plãys with audirvãna (soon)
- UPnP: Flac, WAV, MP3, ogg
Power & Thermal
- Power Supply: 100-240V auto-switching
- Max Consumption: 140W (0,5W idle)
- Cooling: Temperature-controlled exhaust fans
- Heat Output: 480 BTU/hr (max load)
- Mains fuse: 2x T800mA
Chassis & Dimensions
- Form Factor: 2RU rack-mountable
- Net Weight: 8.6kg / 19 lbs

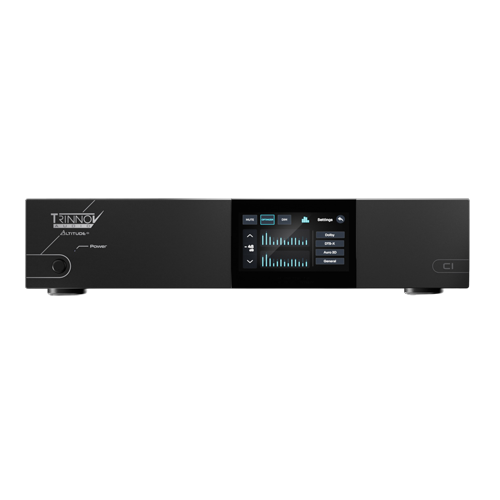

- Front Plate: Smoked-glass touchscreen in brushed aluminum
- Design: Minimalist, with removable ears/feet
- W x H x D (no ears/feet): 438 x 88 x 371 mm / 17.24 x 3.46 x 14.61 in
- W x H x D (with ears/feet): 482 x 97 x 371 mm / 18.98 x 3.82 x 14.61 in
